NSN 5310-01-054-0013
Part Details | CLIP-ON NUT
5310-01-054-0013 An internally threaded fastener, plain or self-locking, of various shapes attached to a preformed item of semi-rigid material designed to retain, position or support other items by its own inherent spring action. The internally threaded fastener and the preformed item may be of one piece construction or fastened together by other means.
Alternate Parts: C88362, C8836-2, 132004, 05242, 5310-01-054-0013, 01-054-0013, 5310010540013, 010540013
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 13, 1978 | 01-054-0013 | 35871 ( NUT, CLIP-ON ) |
REFERENCE DRAWINGS & PICTURES

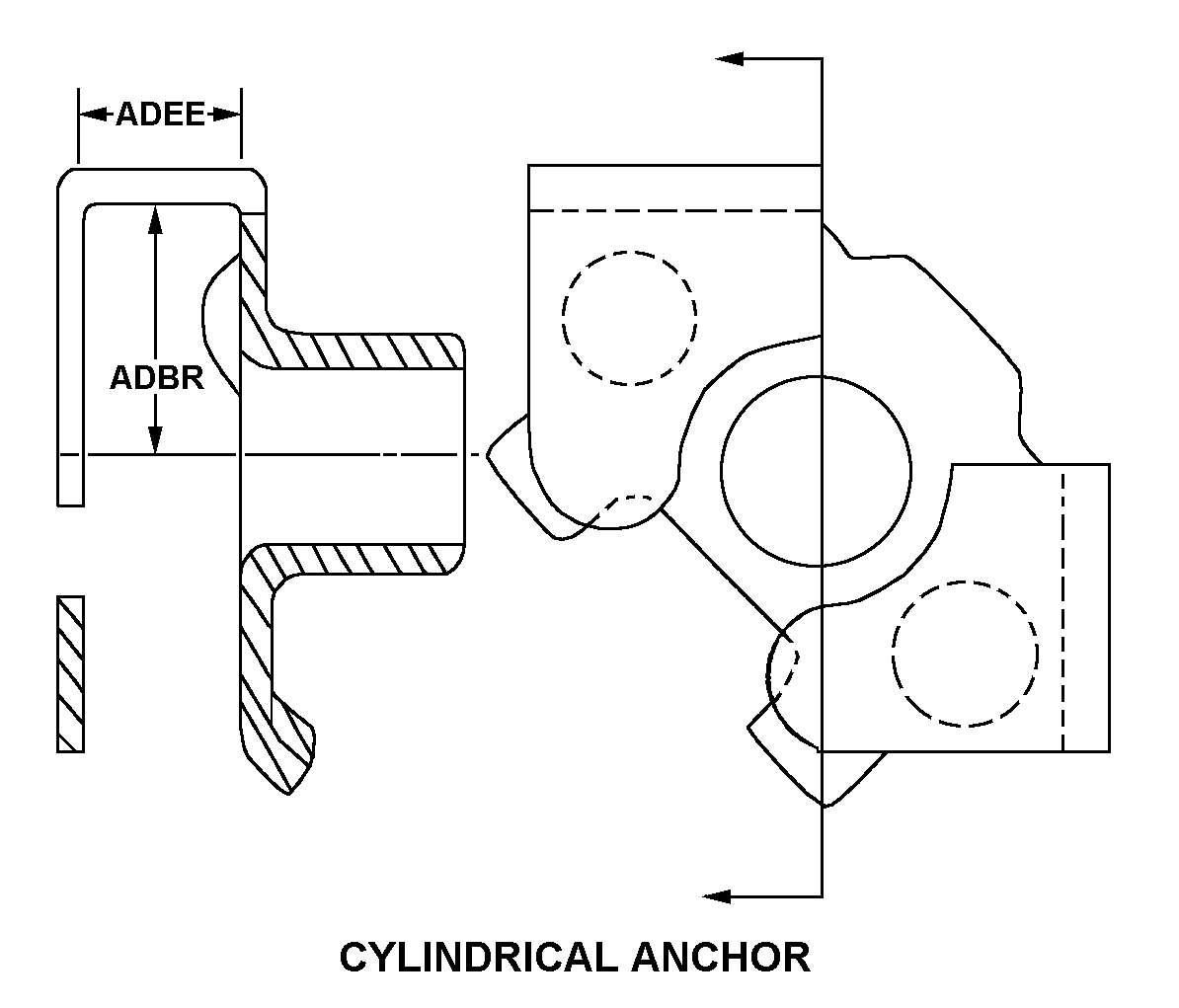

CYLINDRICAL ANCHOR
Cross Reference | NSN 5310-01-054-0013
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| C8836-2 | 81755 | LOCKHEED MARTIN CORPORATIONDBA LOCKHEED MARTIN AERONAUTICS |
| 132004 | 60119 | MONADNOCK COMPANY, THEDBA LISI AEROSPACE |
| 05242 | 55452 | THE TITAN CORPORATIONDIV PREVIOUSLY KNOWN AS PACER |
Technical Data | NSN 5310-01-054-0013
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNJC |
| NOMINAL THREAD SIZE | 0.112 INCHES |
| THREAD QUANTITY PER INCH | 40 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| NUT STYLE | CYLINDRICAL ANCHOR |
| DISTANCE FROM BASE TO CENTER OF APERTURE | 0.154 INCHES NOMINAL |
| PANEL THICKNESS | 0.060 INCHES MINIMUM AND 0.062 INCHES MAXIMUM |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| LUBRICATION | DRY FILM LUBRICANT |
