NSN 5310-01-062-1529
Part Details | BARREL PLAIN NUT
5310-01-062-1529 A nut of cylindrical or partly cylindrical cross-section with integral threads perpendicular to the axial centerline. Ends may be flat or flanged. Excludes NUT (1), PLAIN, ROUND.
Alternate Parts: 41701000, 4170-1000, 41701000, 4170-1000, 5310-01-062-1529, 01-062-1529, 5310010621529, 010621529
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JUL 11, 1978 | 01-062-1529 | 21926 ( NUT, PLAIN, BARREL ) |
REFERENCE DRAWINGS & PICTURES

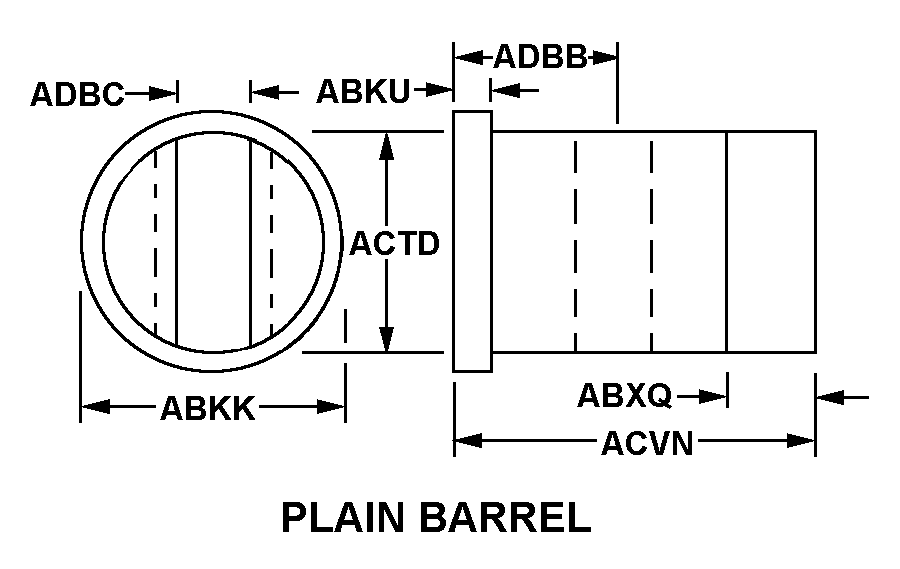

PLAIN BARREL
Cross Reference | NSN 5310-01-062-1529
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 4170-1000 | 24655 | GENRAD INC |
| 4170-1000 | 62015 | IET LABS., INC.DBA IET LABS |
Technical Data | NSN 5310-01-062-1529
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNEF |
| NOMINAL THREAD SIZE | 0.250 INCHES |
| THREAD QUANTITY PER INCH | 28 |
| THREAD CLASS | 2B |
| THREAD DIRECTION | RIGHT-HAND |
| NUT STYLE | A PLAIN BARREL |
| FLANGE DIAMETER | 0.719 INCHES NOMINAL |
| FLANGE THICKNESS | 0.062 INCHES NOMINAL |
| NUT DIAMETER | 0.437 INCHES NOMINAL |
| NUT LENGTH | 0.531 INCHES NOMINAL |
| DISTANCE FROM CENTERLINE OF THREADED HOLE TO END OF NUT | 0.469 INCHES NOMINAL |
