NSN 5310-01-062-6596
Part Details | CLIP-ON NUT
5310-01-062-6596 An internally threaded fastener, plain or self-locking, of various shapes attached to a preformed item of semi-rigid material designed to retain, position or support other items by its own inherent spring action. The internally threaded fastener and the preformed item may be of one piece construction or fastened together by other means.
Alternate Parts: 1009890001, 100989-0001, C31404142024, C31404-1420-24, 5310-01-062-6596, 01-062-6596, 5310010626596, 010626596
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JUL 21, 1978 | 01-062-6596 | 35871 ( NUT, CLIP-ON ) |

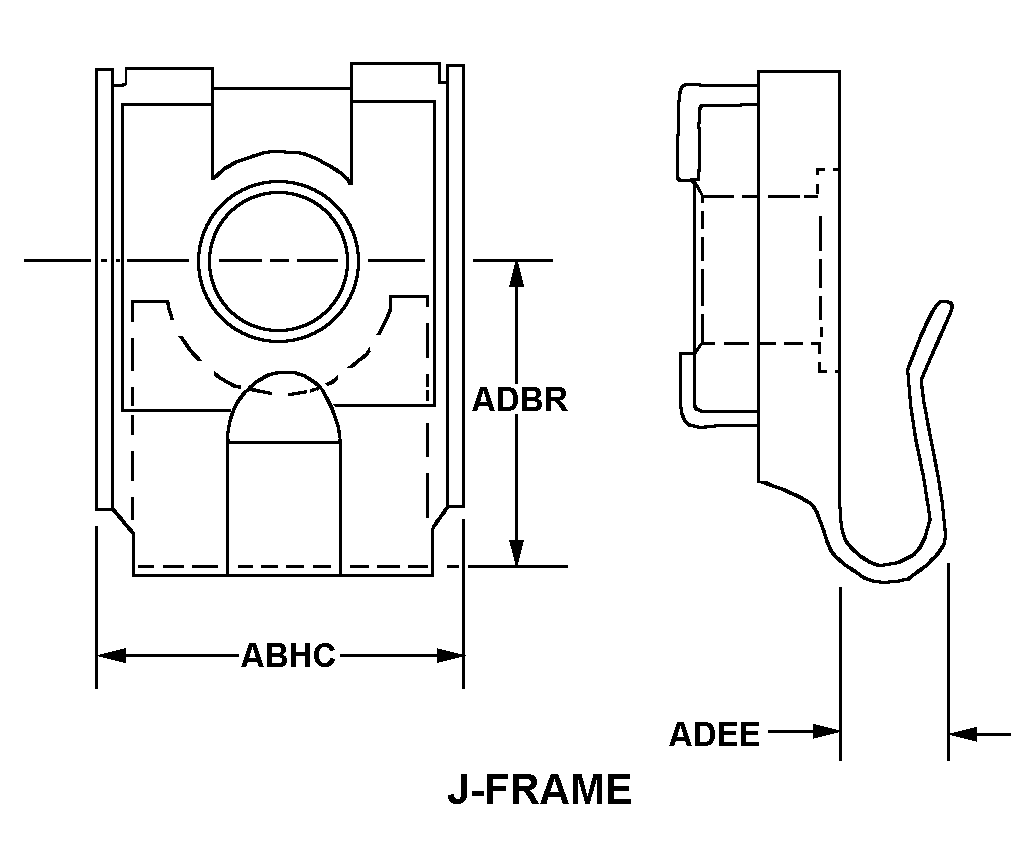

REFERENCE DRAWINGS & PICTURES
J-FRAME
Cross Reference | NSN 5310-01-062-6596
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 100989-0001 | 65597 | THALES DEFENSE & SECURITY, INC. |
| C31404-1420-24 | 78553 | TINNERMAN PALNUT ENGINEEREDPRODUCTS, INC. |
Technical Data | NSN 5310-01-062-6596
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNC |
| NOMINAL THREAD SIZE | 0.250 INCHES |
| THREAD QUANTITY PER INCH | 20 |
| THREAD CLASS | 2B |
| THREAD DIRECTION | RIGHT-HAND |
| NUT STYLE | J-FRAME |
| OVERALL WIDTH | 0.620 INCHES NOMINAL |
| DISTANCE FROM BASE TO CENTER OF APERTURE | 0.535 INCHES MINIMUM AND 0.565 INCHES MAXIMUM |
| PANEL THICKNESS | 0.098 INCHES MINIMUM AND 0.118 INCHES MAXIMUM |
