NSN 5310-01-073-7801
Part Details | KEY WASHER
5310-01-073-7801 A washer of nonresilient material usually having two parallel bearing surfaces. The outside and/or inside edges have one or more protuberances. The ends and/or edges may be prebent at any angle or the protuberances may be prebent at any angle to the bearing surfaces. The keys or lugs may be fitted into keyways in adjacent material or they may be bent over after application to hold or lock one or more items in place. Excludes thrust type washer.
Alternate Parts: 310509802, 3-105-098-02, 12286277, 5310-01-073-7801, 01-073-7801, 5310010737801, 010737801
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | MAR 21, 1979 | 01-073-7801 | 01869 ( WASHER, KEY ) |
REFERENCE DRAWINGS & PICTURES

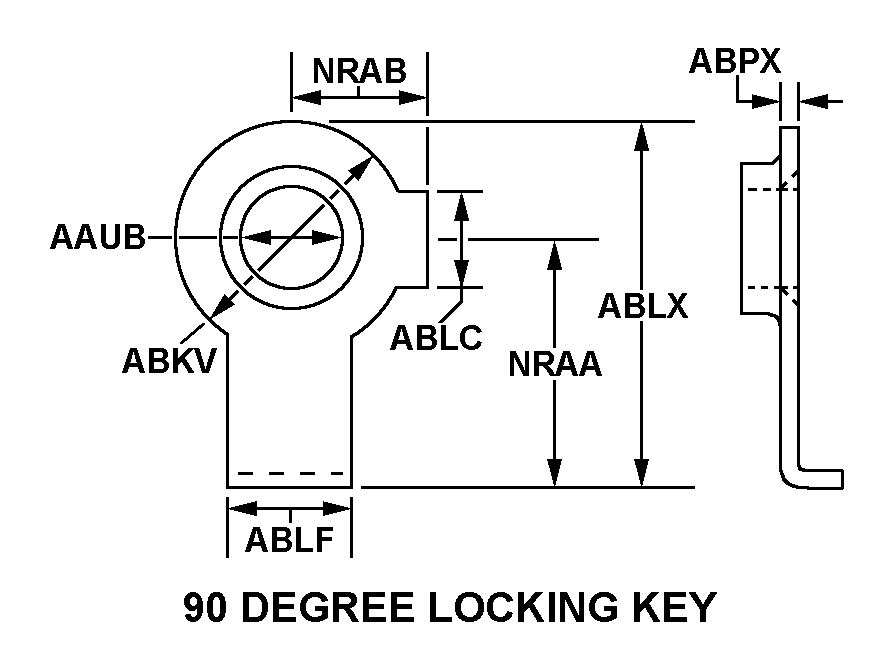

90 DEGREE LOCKING KEY
Cross Reference | NSN 5310-01-073-7801
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3-105-098-02 | 99193 | HONEYWELL INTERNATIONAL INC.DBA HONEYWELL |
| 12286277 | 19207 | U S ARMY TANK AUTOMOTIVE COMMANDAMSTA-IM-MM |
Technical Data | NSN 5310-01-073-7801
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 90 DEGREE LOCKING KEY |
| HOLE DIAMETER | 1.400 INCHES MINIMUM AND 1.405 INCHES MAXIMUM |
| OUTSIDE DIAMETER | 1.650 INCHES NOMINAL |
| EXTERNAL PREBENT KEY WIDTH | 0.155 INCHES MINIMUM AND 0.165 INCHES MAXIMUM |
| MATERIAL THICKNESS | 0.022 INCHES MINIMUM AND 0.028 INCHES MAXIMUM |
