NSN 5310-01-108-2676
Part Details | ROUND EXTENDED WASHER SELF-LOCKING NUT
5310-01-108-2676 A nut, circular in shape, having wrenching facilities such as flats, holes, protrusions, slots or splines in or on the periphery. It has an integral washer which extends beyond the wrenching element periphery and an integral feature is incorporated for locking on the threads of a mating member.
Alternate Parts: ST3M797C5, 10122152, 79219524, 79219-524, 5310-01-108-2676, 01-108-2676, 5310011082676, 011082676
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | FEB 24, 1981 | 01-108-2676 | 36744 ( NUT, SELF-LOCKING, EXTENDED WASHER, ROUND ) |
REFERENCE DRAWINGS & PICTURES

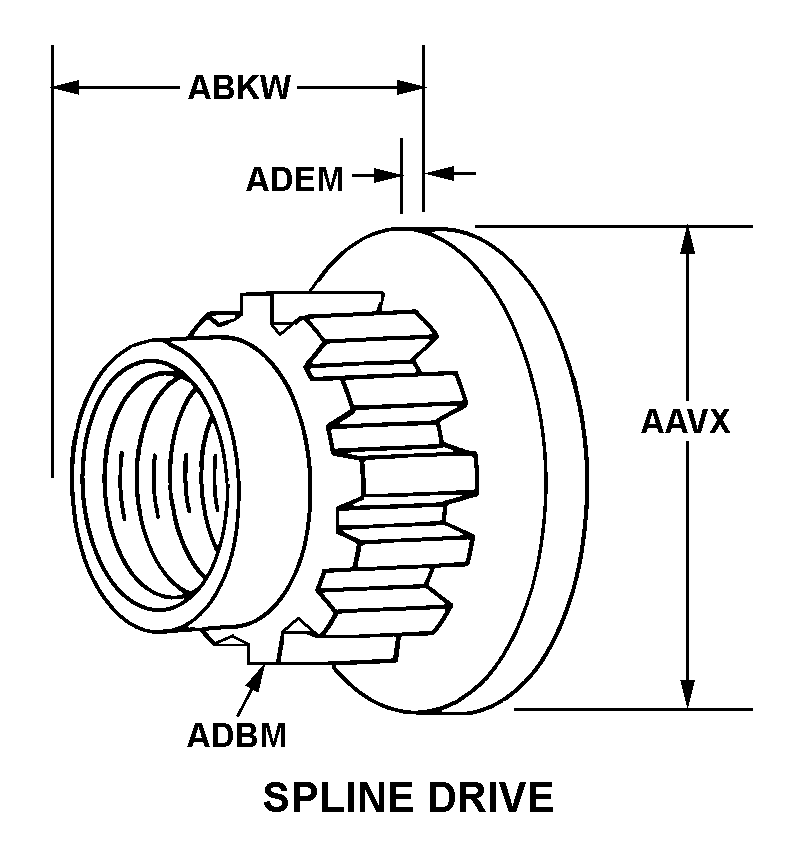

SPLINE DRIVE
Cross Reference | NSN 5310-01-108-2676
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| ST3M797C5 | 76301 | BOEING COMPANY, THEDBA BOEING |
| 10122152 | A486G | NIMIKKEISTOKESKUS NCB FINLAND |
| 79219-524 | 56878 | SPS TECHNOLOGIES, LLCDBA AEROSPACE DIVISION |
Technical Data | NSN 5310-01-108-2676
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNJF |
| NOMINAL THREAD SIZE | 0.250 INCHES |
| THREAD QUANTITY PER INCH | 16 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| NUT STYLE | SPLINE DRIVE |
| WASHER OUTSIDE DIAMETER | 0.541 INCHES MAXIMUM |
| OVERALL HEIGHT | 0.367 INCHES MAXIMUM |
| WASHER THICKNESS | 0.070 INCHES NOMINAL |
| DRIVE POINT QUANTITY | 12 |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| LUBRICATION | DRY FILM LUBRICANT |
