NSN 5310-01-108-8405
Part Details | WELDING PLAIN NUT
5310-01-108-8405 A nut with projection(s) that is/are designed to localize heating, during welding, at predetermined points and to fuse with the metal to which the nut is mounted.
Alternate Parts: 1F0750, 1F750, 1F0750, 1F-0750, 5310-01-108-8405, 01-108-8405, 5310011088405, 011088405
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | MAR 06, 1981 | 01-108-8405 | 15885 ( NUT, PLAIN, WELDING ) |

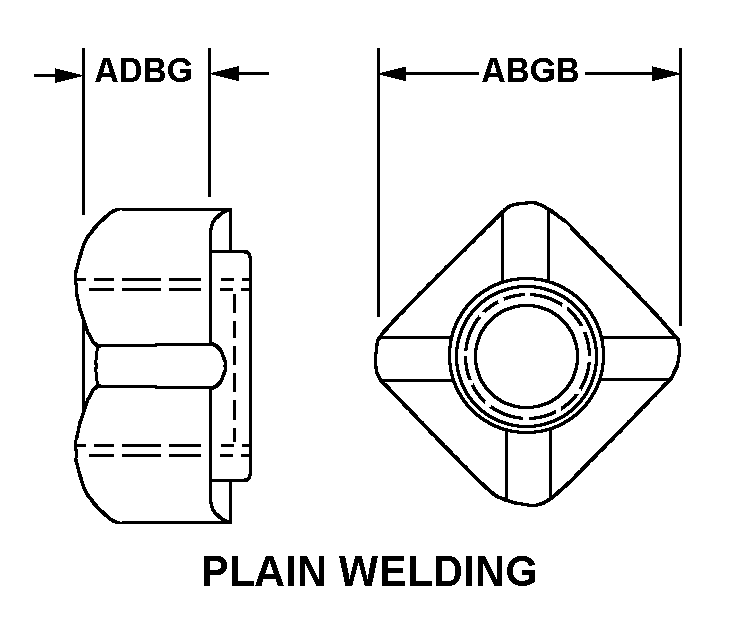

REFERENCE DRAWINGS & PICTURES
PLAIN WELDING
Cross Reference | NSN 5310-01-108-8405
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1F0750 | 11083 | CATERPILLAR INC.DBA CATERPILLAR |
| 1F750 | 11083 | CATERPILLAR INC.DBA CATERPILLAR |
| 1F-0750 | D9182 | ZF INDUSTRIEANTRIEBE WITTEN GMBH |
Technical Data | NSN 5310-01-108-8405
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNC |
| NOMINAL THREAD SIZE | 0.375 INCHES |
| THREAD QUANTITY PER INCH | 16 |
| THREAD CLASS | 2B |
| THREAD DIRECTION | RIGHT-HAND |
| NUT STYLE | PLAIN WELDING |
| WIDTH ACROSS CORNERS | 18.16 MILLIMETERS MINIMUM |
| NUT THICKNESS | 6.1 MILLIMETERS MINIMUM AND 6.6 MILLIMETERS MAXIMUM |
